Typhon AI: The Ultimate 8x GPU Powerhouse for Enterprise AI & HPC

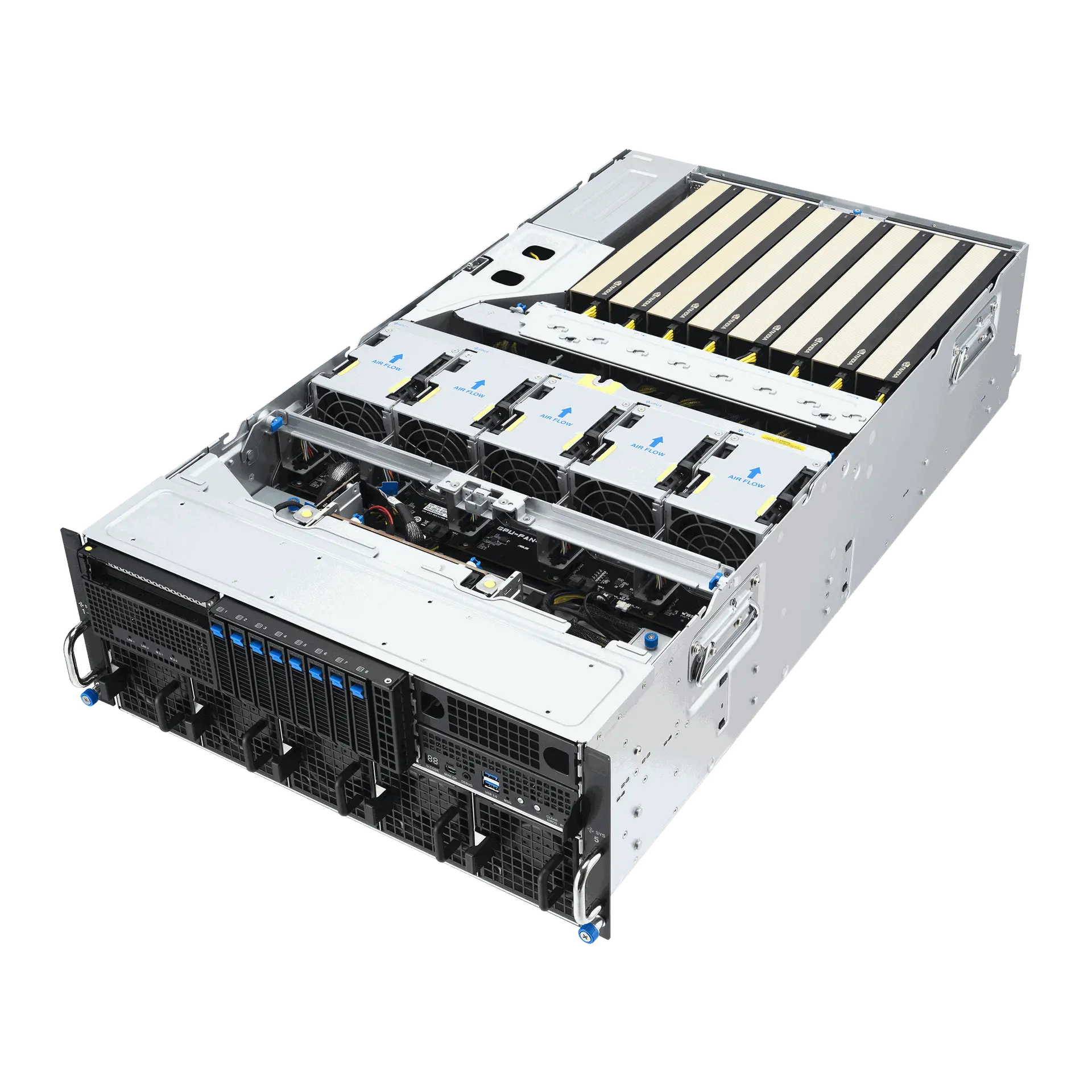

Powered by AMD EPYC™ 9005 processors, ESC8000A-E13P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs (up to 600W each), either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge or AMD Infinity Fabric™ Link. This configuration allows seamless scaling and performance enhancement, making ESC8000A-E13P an ideal choice for tackling the most demanding enterprise AI and HPC tasks.

ESC8000A-E13P takes AI infrastructure to the next level by leveraging NVIDIA® MGX™, an open and flexible reference design that ensures future-proof compatibility. With its innovative modular architecture offering up to 160 customizable configurations, clients can easily tailor their solutions to meet specific AI and high-performance computing needs. MGX sets a new industry benchmark for modular server design, enhancing ROI and slashing time to market — empowering businesses to stay ahead in the fast-evolving AI landscape.

The AMD EPYC™ 9005 series takes AMD’s legacy of x86 architecture innovation to new heights, leveraging cutting-edge 3nm technology for record-breaking performance. With the introduction of high-performance DDR5 DIMMs and blazing-fast PCIe 5.0 I/O, EPYC™ 9005 CPUs are engineered to handle the most demanding workloads. In a dual-socket configuration, the platform delivers up to 192 Zen 5c cores and 128 PCIe 5.0 lanes, making it purpose-built for memory-hungry AI-driven data centers, machine learning, high-performance computing, and large in-memory simulations

This server features the latest Broadcom PEX89000 series of switches, supporting up to 1,024Gbps (128GBps) of raw bandwidth per port (x16) to create high-availability hyper-scale systems. It uses the PCI Express 5.0 bus to empower communication between in-rack hosts and endpoints. With multiple PCIe Gen5 expansion slots for NIC and BlueField-3 cards, Typhon AI simplifies connectivity while providing the highest PCIe-switching performance available for data center servers, storage, and networks.

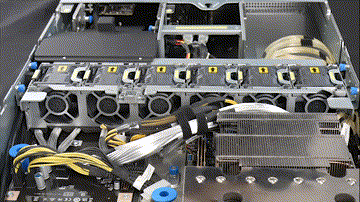

Designed for easy maintenance with a refined mechanical structure, ESC8000A-E13P allows the entire system to be disassembled completely without tools.

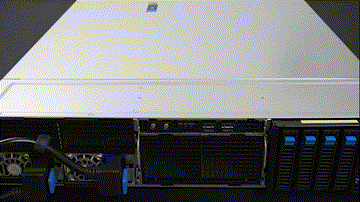

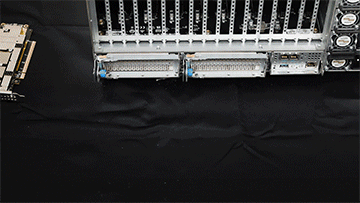

• Tool-less PCIe card removal and quick installation for rapid upgrades
• Hot-swap support for up to 8 × 2.5” NVMe drives

Remote Server Management: ASUS ASMB11-iKVM, built on the ASPEED 2600 chipset with AMI MegaRAC SP-X, provides full out-of-band access through WebGUI, IPMI, and Redfish® API.

Streamlined IT Operations: ASUS Control Center (ACC) enables centralized hardware/software monitoring, remote BIOS configurations, diagnostics, and enhanced security with hotfix updates — simplifying IT management across infrastructure.

Typhon AI supports Trusted Platform Module 2.0 (TPM 2.0) to secure hardware with cryptographic keys. Regular firmware updates help protect against vulnerabilities, ensuring enterprise-grade reliability for mission-critical environments.
